Description

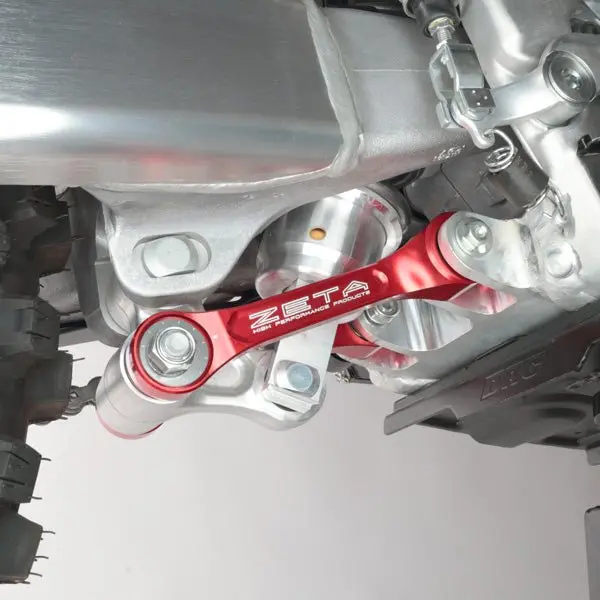

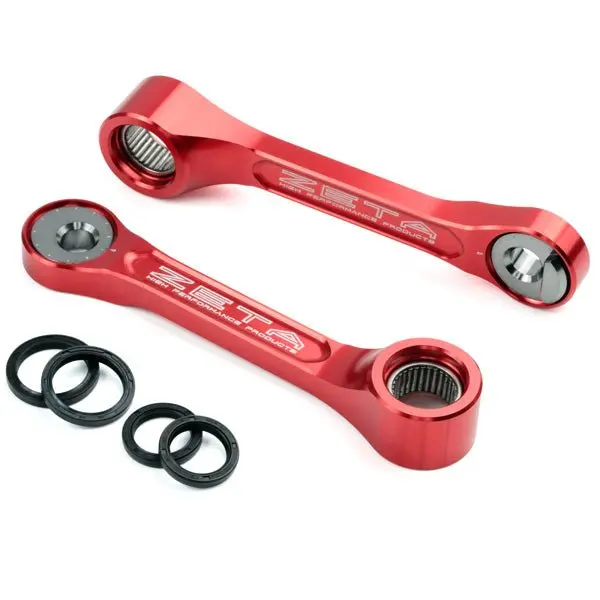

Adjustable Lowering Link
Riding height is very important you need to be able to control the bike at all times. So for those riders that find that their bikes are a little bit high, the Zeta Anodized Adjustable Lowering Link are perfect replacements for your OEM linkage. Lowering your center of gravity in some case gives you better handling and a more comfortable riding height. With it’s adjustable feature you can really take it to the next level in customization.
Specifications
– Adjustable seat height by rotating the attachment to change link rod length.
(Reference : About + 5 mm ~ – 25 mm. vary by models.)
– Also adjustable operation of the rear suspension according to the situation,
such as off-road course by changing the lever link ratio.
– 5 clips to lower. A standard position and 1 clip to lift up. Total 7 clips range adjustment.
– Bolt on design, pre-installed bearings and dust seal, only changing a stock link rod.
– 7000-series aluminum alloy, high level laser finish.
Check out these easy to find application charts for your bike.
See Application Chart below:
2018.07.21 updated
| Bike | Year | Black | Red | Blue |
| HONDA | ||||
| CRF250R | 14-17 | – | ZE56-01032 | – |
| 18 | – | ZE56-01042 | – | |
| CRF450R | 16 | – | ZE56-01032 | – |
| 17-19 | – | ZE56-01042 | – | |
| CRF450RX | 17-19 | – | ZE56-01042 | – |
| CRF250X | 07-17 | – | ZE56-01062 | – |
| CRF450X | 08-17 | – | ZE56-01082 | – |
| CRF250L | 12-17 | – | ZE56-01132 | – |
| CRF250L LD | 17 | – | ZE56-01132 | – |
| CRF250RALLY LD | 17 | – | ZE56-01132 | – |
| CRF1000L | 16-17 | – | ZE56-01162 | – |
| YAMAHA | ||||
| YZ125 | 06-19 | – | – | ZE56-01616 |
| YZ250 | 06-19 | – | – | ZE56-01616 |
| YZ250F | 14-19 | – | – | ZE56-01656 |
| YZ450F | 10-19 | – | – | ZE56-01656 |
| YZ125X | 17-18 | – | – | ZE56-01616 |
| YZ250X | 16-19 | – | – | ZE56-01616 |
| YZ250FX | 15-19 | – | – | ZE56-01656 |
| YZ450FX | 16-18 | – | – | ZE56-01656 |
| WR250F | 07-14 | – | – | ZE56-01636 |
| 15-18 | – | – | ZE56-01656 | |
| WR450F | 07-15 | – | – | ZE56-01636 |
| 16-18 | – | – | ZE56-01656 | |
| WR250R/X | 07-17 | – | – | ZE56-01736 |
| KAWASAKI | ||||
| KX250F | 17-18 | ZE56-01230 | – | – |
| KX250 | 19 | ZE56-01230 | – | – |
| KX450F | 17-18 | ZE56-01270 | – | – |
| SUZUKI | ||||
| RMZ250 | 13-18 | – | ZE56-01432 | – |
| RMZ450 | 13-17 | – | ZE56-01472 | – |
| DRZ400/E/S/SM | 00-17 | – | ZE56-01582 | – |
www.zeta-racing.com/bikes/index.html
Application Chart Click Here
Application Chart Click Here
